The Occuity

PM1 Pachymeter

Ophthalmic Series

The world’s first handheld, non-contacting, optical pachymeter.

The Occuity PM1 will make it easier, faster and safer to diagnose glaucoma by measuring corneal thickness in just a few seconds.

DUE TO LAUNCH IN 2021

The first of Occuity's revolutionary handheld optical ophthalmic devices, the PM1 allows veterinarians to take corneal thickness measurements quickly and easily.

Simple to use, the PM1 is held in front of the subject’s eye at a comfortable working distance. Our advanced Precision Optical Systems intelligently aligns with the eye and, once initiated, automatically takes a measurement. Scanning at ~100Hz for just a few seconds, the PM1 captures multiple readings before clearly displaying the average of these results along with the standard deviation (variability) figure.



There is no risk of infection and no need to anaesthetise the eye, making the whole process much more comfortable for the operator and subject.

Features & Benefits

The Occuity PM1 will provide the measuring and non-contacting capabilities of existing optical desktop devices at a price point comparable to the handheld contacting ultrasound devices.

Non-contact

A better experience for everyone

The PM1's non-contact capabilities make it totally pain-free and a much better experience for the animal.

Accurate

Measure Corneal thickness, accurately, reliably and repeatably

In-house, testing shows the Occuity PM1 will be capable of delivering reliable, repeatable measurement with accuracy typically within +/- 5 microns.

The PM1 will be undergoing clinical trials and CE certification in 2021.

Pachymeter Close Up.jpg
Handheld

Desktop capability, handheld utility

The PM1’s compact design will make it easy to move and store. You can use it handheld or, if you prefer, in a slit-lamp chinrest cradle making it perfect for both clinical and non-clinical settings.

Fast

Results in just a few seconds

The PM1 utilises our patented Precision Optical Systems technology to align with the eye and measure corneal thickness in just a few seconds. With one touch, the PM1 captures 200 scans each second before instantly providing an averaged measurement.

Website Image s- PM1.jpg
Easy to operate

Intuitive design means training takes just a few minutes

The PM1’s touchscreen interface has been thoughtfully designed making it easy and intuitive to use. Clinical staff and technicians can become proficient with just a few minutes of training.

Safer

Both for the operator and the customer

With its generous working distance, the PM1 never touches the eye – removing the potential risk of spreading infections and accidental damage to the cornea. The PM1's non-contacting capability also enhances COVID-19 safety.

pachymeter v3 back.png
Occuity Pachymeter In inductive charging
No consumables

No cleaning, No waste, No waiting

Removing the need to contact the eye, removes the need for anaesthetic eye drops, waiting and cleaning times. This reduces costs, waste, downtime and the risk of damaging equipment through cleaning.

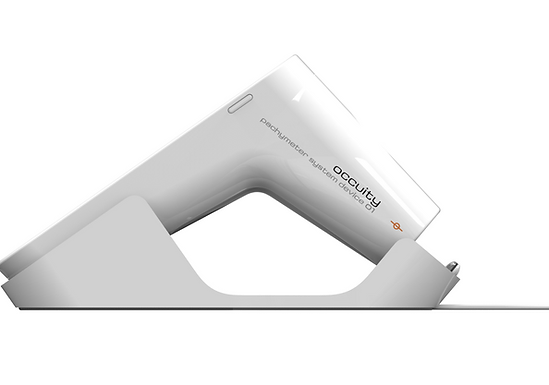

Wireless Charging

Ready when you need it

The Occuity PM1 will always be ready thanks to the innovative wireless charging dock. Once placed back on the cradle, the battery will charge automatically. The cradle also contains a built-in calibration artefact.

Website%20Image%20s-%20PM1%20-%20Wireles
Cost Effective

Desktop Performance, Handheld Pricing

Enjoy the accurate measuring and non-contacting capabilities of expensive optical desktop devices at a price point comparable to existing contacting ultrasound devices.


Exclusive Launch Offer

Register your interest today for our exclusive launch offer

The Occuity PM1 Ophthalmic Series Pachymeter is planned for launch in 2021. To ensure you are one of the first to benefit from its groundbreaking technology and to enjoy our exclusive launch offer - with no commitment - express your interest today.




FAQs

How does a pachymeter work?


The Occuity PM1 pachymeter uses an optical technique which means it is completely non -contacting, unlike existing invasive ultrasound pachymeters, which have to directly contact a patient's eye. The measurement principle is a called a confocal scan – a tightly focussed beam of invisible light is scanned through the cornea and the reflections are detected and analysed to determine the thickness of the cornea.




Who can operate the Occuity PM1 pachymeter?


As the PM1 is non-contacting and cannot hurt the animal, it can therefore be used by a wide range of operators both veterinarians and technicians. It is easy to use thanks to it’s intuitive interface and can be taught in mere minutes.




What price-range do you anticipate the device will be in?


We intend that the price will be competitive with the existing ultrasound meters but will have many significant advantages, such as the fact it is non-contacting, provides a better customer experience, uses no consumables and is safer and easier to operate.




What practice environments do you anticipate Occuity PM1 pachymeter will benefit the most?


Most practice environments would benefit from a pachymeter, primarily in order to better understand the animal's risk of glaucoma. The Corneal Centre Thickness (CCT), can affect the validity and accuracy of the IOP (intra ocular pressure) measured by the tonometer. Knowing the CCT will allow veterinarian to understand if their tonometer is actually under or over estimating the IOP. Many veterinarians also make the mistake of not knowing what their tonometer assumes corneal thickness to be. Most non-contact tonometers assume a corneal thickness of 550 microns, whereas the Goldmann assumes a thickness of 520 microns.

If a practice is involved in Glaucoma shared care, for example, they should measure CCT and provide this with their reports, along with IOP and sometimes ‘corrected’ IOP.

Patients with thinner corneas are at a higher risk of glaucoma as well, so understanding the risk factors is important.

However, there are also other circumstances where CCT may be useful, such as detection of Fuch’s endothelial dystrophy in post cataract patients, detection or progression of KCC (Keratoconus) or other corneal ectasia’s and also assessing the stability of corneal grafts.’




It takes just a few seconds – is this for one reading or multiple? How many readings are required per eye?


The meter actually scans at ~200Hz so collects many scans each second. So multiple readings are collected but the result is displayed as the average of those along with the standard deviation (variability) figure.





Does it measure IOP as well as corneal thickness?


No, although pachymetry is used in combination with IOP measurement in the diagnosis of glaucoma, our meter is a pure pachymeter. Our patented technology offers other uses and we are of course researching and developing these.




Does the PM1 require any consumables?


No. One one of our technology’s main advantages is that, being non-contacting, no consumables are required and there are no ongoing costs. This also provides other advantages such as the fact that there is no need for drops to numb the eye and no need for post contact cleaning. Overall this means consultations are much quicker, which is advantageous for busy operators. The reduced need for cleaning, also means there is no risk of ‘probes’ being damaged, as can happen with the cleaning of contacting ultrasound pachymeters.




How do I purchase the pachymeter?


Occuity will be working with distributors in each country. Please visit x page on our website to find the distributor in your region. Discussions are in progress in other regions and we will announce our partners once these are finalised, but please express your interest if a distributor has not yet been selected for your region. Click here




How do I become a distributor?


If you are interested in becoming a distributor, please contact us.




Why does the pachymeter use optical technology?


Occuity uses an optical technology in which a tightly focused beam of light is scanned through the eye. When the focus impinges on a surface a bright reflection is seen which allows the meter to know exactly where that surface is.

In pachymetery we collect the reflections from the front and back surfaces of the cornea and this allows us to measure its precise thickness.

The use of light has a number of advantages. As the wavelength of light is much smaller than that of ultrasound the meter is capable of being significantly more accurate. Light can also be shone into the eye from a distance so the meter can be completely non-contacting. Occuity has also been able to use its expertise in optics to adapt a telecommunications component called a bi-di to act as the source and receiver in the meter and this allows us to make meters that are very compact and very cost effective.





Image Gallery

1/4

Comparison

Occuity PM1 - Projected*

Technology

Ultrasound

Optical

Contact

Multiple Contact of Cornea

Non-Contact

Existing Handheld Pachymeters

Measurement Time

Full Measurement in seconds

Several Minutes

Risk

None

Risk of accidental corneal damage & infection transmission

Cleaning

No clinical cleaning required

Clinical cleaning required between every patient

Consumables

None

Anaesthetic drops, cleansing wipes, replacement probes

Operators

Clinicians & Technicians

Specialist Trained Clinician Only

Training

Minutes

Specialist Training Required

Display

TFT Touchscreen Design

Generally Basic LCD Screens

Usage Location

Clinic, Front Office, Mobile

Clinic
